First Impressions

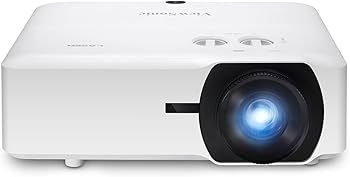

As mentioned, the ViewSonic LS740HD is a full HD 1080p (1920x1080) resolution commercial projector made for bright environments with its 5,000 lumen claim. (It measured slightly shy of its claim at 4,783 ANSI lumens, well within the accepted tolerance.) At just 11.3 x 5.0 x 8.5 inches (WHD) and 6.6 lbs, it is compact and can easily be transported from room to room, as well as installed permanently for a variety of applications where ambient light is a concern. This is a DLP projector with third-generation laser phosphor technology, with a light engine lifespan of up to 30,000 hours in Eco mode.The LS740HD's lens is a 1.3x manual zoom lens with manual focus, located on the front left of the projector and controlled via its focus and zoom rings. The focus ring is a ribbed ring around the front of the lens, and the zoom ring is accessed in a recessed area on top. The front IR sensor is to the left of the lens. On top of the projector, at the back, is the control panel, and the top IR sensor. The air intake vents are on either side of the LS740HD, with the intake on the left, and the exhaust on the right. The back of the projector houses the inputs and connectors. If you opt for an inverted ceiling mount, there is a recess on the bottom where you can secure the supplied power brick with a cable tie.
Introduce
| Parameter | ViewSonic LS740HD |
|---|---|
Picture |  |
Reference Price | $967.44 |
Recommended Uses | Education, Home Cinema, Gaming, Business |
Built-In Media | User Manual, Power Cord, Remote |
Highlight | • Brightness: 5000 Lumens • Resolution: 1080p • Lamp Life: Up to 30,000 hours • Zoom: 1.3x optical zoom • Projection Angle: 360 degree • Keystone Correction: H/V keystone and 4 corner adjustment • Auto Power: Auto on/off feature • Remote Control: LAN control with Crestron, AMX, Extron, PJ Link, ATEN, ViewSonic’s vController • Connectivity: HDMI and USB Type A compatibility |
Display
| Parameter | ViewSonic LS740HD |
|---|---|
Screen Size | 30 Inches - 300 Inches |
Throw Distance | 1 Meters - 8 Meters |
Contrast Ratio | 3000000:1 |
Maximum Resolution | 1920x1080 Pixels |
Native Resolution | 1920 x 1080 |
Brightness | 5000 Lumen |
Display Type | DLP |
Viewing Experience | The ViewSonic LS740HD projector offers a versatile range of five color modes tailored for various viewing experiences. The Bright mode, while functional in emergency situations, compromises color quality with a yellowish-green hue that makes whites appear muddy and dulls vibrant colors. Presentation mode shines with accurate and vibrant colors, making it ideal for professional settings, although it may struggle with differentiating some bright shades. Cinema mode excels for film and TV viewing, delivering true-to-life colors with a slight enhancement in vibrancy, ensuring an enjoyable visual experience. Overall, the LS740HD effectively balances functionality and quality across its color modes, catering to diverse user needs while maintaining a solid performance in its primary applications. |
Features
| Parameter | ViewSonic LS740HD |
|---|---|
LightSource Life | 20000 Hours |
Controller Type | Remote Control, Button Control |
Control Method | Remote |
Lamp Wattage | 203 Watts |
Wattage | 210 watts |
Connectivity Technology | USB, HDMI, 3.5mm Jack |
Hardware Connectivity | HDMI, USB 2.0 Type A, 3.5mm Audio |
Compatible Devices | Laptop, Gaming Console, Smartphone, Speaker |
Other Features | Built-In Speaker, Eco-Friendly, ultra-large screen, Long-lasting |
L x W x H | 11.3"L x 8.5"W x 5"H |
System Experience | The ViewSonic LS740HD projector is a versatile and feature-rich device designed for various installation needs. Its zoom lens, combined with advanced keystone and geometric correction capabilities, ensures precise image alignment. The option for Portrait Mode is particularly beneficial for environments like museums and retail spaces that require vertical projection. The 360-degree projection feature enhances creative possibilities, allowing users to project images onto any surface at any angle. With a robust cooling design, the projector supports continuous operation, making it suitable for long-term use. The laser light engine contributes to its longevity, and the Eco mode further optimizes performance. Firmware updates are user-friendly, requiring only a USB connection for easy upgrades. However, the absence of on-board Wi-Fi means that wireless mirroring or casting will necessitate additional accessories. Overall, the LS740HD stands out for its adaptability and ease of use, particularly in specialized installation scenarios. |
User Feedback
Pros:• Laser technology provides bright images suitable for large classrooms
• Almost silent operation
• Minimal warmup time
• Runs cool compared to traditional bulb projectors
• Easy focus adjustment with good zoom range
• Versatile setup options (front/rear, table/ceiling)
• Tweaking options with manual/digital zoom and keystone correction
• Good color rendering for the price point
Cons:
• Random orange glitch in display
• No lens shift capability
• Designed to be stationary once placed
• Proprietary power brick and cable may limit flexibility
• Flashing issue persists even after replacement
Overall Impression:
This projector is an excellent entry-level option for presentations and classroom use, offering impressive brightness and features for its price. However, the random orange glitch is a significant drawback that may affect user experience, making it a riskier purchase despite its many strengths.
