First Impressions

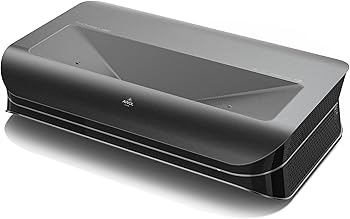

As with many single-chip 4K DLP projectors, the LTV-2500 uses a 0.47-inch imaging chip with a native 1080p mirror array, to which rapid four-phase pixel shifting is applied to achieve full 4K (3840x2160) resolution on screen. The image produced is quite sharp, likely thanks in part to a customized Ricoh F2.0 pure glass lens utilized for increased sharpness.The LTV-2500 has an RGB triple laser light engine capable of providing a maximum of 25,000 hours of laser life, though, as is common with some other discrete RGB lasers, it displayed the image with a small amount of visible laser speckle. The triple laser RGB light engine ultimately provides users with a wide gamut coverage, cited by AWOL at 107% of the Rec.2020 color space. As noted below, our measurements showed 95.3% uv for Rec.2020 coverage, which falls slightly short of spec but is still very wide and more than sufficient to fully cover the more restricted DCI-P3 gamut to which most of today's HDR content is mastered.
Introduce
| Parameter | AWOL Vision LTV-2500 |
|---|---|
Picture |  |
Reference Price | $2999 |
Recommended Uses | Home Cinema |
Built-In Media | User Manual * 1, Triple Laser Projector * 1, Power Cord * 1, AV Input Cable *1, Remote Control * 1 , AAA Batteries* 2, Amazon Fire TV Stick 4k Max * 1 |
Highlight | • Product Type: UST Projector & Center Channel Speaker • Audio Technology: Dolby Atmos, 4.2.2 Surround Sound • Screen Compatibility: ALR Screens (Daylight Series Fresnel) • Resolution: 4K UHD • Color Technology: Triple Laser without Color Wheel • Brightness Features: Enhanced for controlled lighting conditions • 3D Capability: Supports 3D with active shutter glasses • Color Gamut Coverage: 107% BT 2020, 147% DCI-P3 • Noise Level: Whisper quiet operation • Display Size: Up to 150 inches • Additional Features: HDR10+, immersive audio experience |
Display
| Parameter | AWOL Vision LTV-2500 |
|---|---|
Screen Size | 80 Inches - 150 Inches |
Throw Distance | 0.5 Feet - 1.68 Feet |
Contrast Ratio | 2500:1 Pixels |
Maximum Resolution | 3840 x 2160 Pixels |
Native Resolution | 3840 x 2160 |
Brightness | 1700 ISO |
Display Type | Laser |
Picture Enhancement | Dolby Vision, HDR10+ |
Viewing Experience | Overall Impression: The AWOL LTV-2500 presents a complex picture mode system that allows for a variety of settings for both SDR and HDR content, including options like Standard, Vivid, and multiple Dolby Vision modes. However, it suffers from a persistent blue color bias across all modes, which, while more tolerable than green biases, detracts from accurate color reproduction. The adjustable user color temperature settings provide some customization, but the inconsistent handling of wide color gamut switching limits their effectiveness. Additionally, the reliance on a toggle switch for color space selection complicates usage, making it challenging to maintain consistent picture quality across different content types. Overall, while the LTV-2500 offers a range of features, its color management issues significantly impact the viewing experience. |
Features
| Parameter | AWOL Vision LTV-2500 |
|---|---|
Video Encoding | H.264, H.265 (HEVC), VP9 |
LightSource Life | 25000 Hours |
Controller Type | Remote Control |
Control Method | Remote |
Wattage | 175 watts |
Connectivity Technology | HDMI |
Hardware Connectivity | S/PDIF, HDMI, USB 2.0, 802.11 ac/b/g/n |
Compatible Devices | Television, Laptop, Gaming Console |
Other Features | Dolby Atmos, HDMI eARC, Triple Laser without Color Wheel, 80”-150” f2.0 glass lens, Dolby Vision, 4K UHD, Active 3D, HDR 10+ |
L x W x H | 23.6"L x 13.9"W x 5.7"H |
System Experience | The LTV-2500 delivers a solid performance with its compact design, featuring a unique ultra-short throw lens capable of projecting a large 150-inch image from a minimal distance. While the native contrast ratio of 1,314:1 is lower than the advertised 2,500:1, it still provides satisfactory shadow detail, enhancing the viewing experience. However, the projector may struggle with brightness when projecting at maximum size, particularly in environments with ambient light. Overall, the LTV-2500 offers an impressive cinematic experience in a space-saving form factor, though careful consideration of lighting conditions is necessary to fully enjoy its capabilities. |
User Feedback
Pros:• Excellent brightness, even in well-lit conditions
• Great picture quality with 4K HDR signals
• Impressive color reproduction
• Low gaming lag, making it suitable for gaming
• Built-in sound is commendable
• Good value for the bundled price with the ALR screen
Cons:
• Presence of rainbow effect (RBE) may be irritating for some users
• Image quality issues for those sensitive to RBE
• DLP processor quality is sub-par compared to other technologies like 3-LCD or LCoS
Overall Impression:
The AWOL Vision LTV 2500 offers a bright and vibrant picture, making it a strong contender in the UST projector market, especially for those seeking value in a bundle. However, the presence of RBE and the concerns regarding the DLP processor may deter some users. If you can overlook these issues, the projector delivers an impressive viewing experience.
